Supply in Kazakhstan
KEG TRK supplies equipment diagnostics solutions (Ion Science) across Kazakhstan: Almaty, Astana, Karaganda, Ust-Kamenogorsk, Aktobe and other regions. Official warranty, monitoring system design, installation, commissioning and personnel training.
Key features
Applications and resources
Industry solutions, landing pages and articles on Ion Science Titan 2 — fixed benzene monitor
Typical tasks
- Benzene monitoring at pump houses and loading racks
- Reformers and aromatics units
- Petroleum product tank farms
- Perimeter of refineries and chemical plants
- Workplace air monitoring in process buildings
Overview

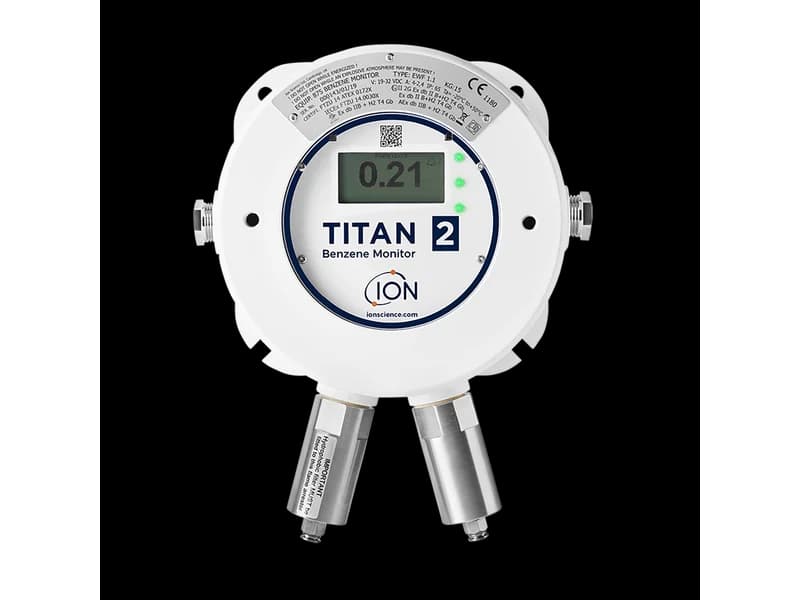

The Titan 2 is a fixed benzene monitor from the British company Ion Science. Installed in a hazardous area, it measures benzene specifically, not total hydrocarbons, once a minute around the clock. This matters at refineries and petrochemical plants, where benzene is mixed with other vapours and its exposure limits are very low.
How it works
- MiniPID T2 sensor with a 10.0 eV lamp and Ion Science's proprietary separation method excludes other gases.
- Sampling by pump at 100 ml/min or more through a PTFE line up to 10 m long, so the monitor can sit in a convenient spot while sampling where needed.
- Range from 20 ppb to 20 ppm with 10 ppb resolution.
- Accuracy ±50 ppb or ±10 %, and ±10 ppb for readings up to 0.1 ppm.
Integration
| Interface | Purpose |
|---|---|
| Isolated 4–20 mA | analogue signal to PLC or DCS |
| RS485 Modbus ASCII/RTU | digital link to the control system |
| 2 relays, 24 V DC 1.25 A | alarm and fault |
| Micro USB | configuration and data download |
| At least 2 GB memory | six months or more of history |
Technical specifications
| Parameter | Value |
|---|---|
| Sensor | MiniPID T2, 10.0 eV |
| Range | 0.02–20 ppm |
| Resolution | 10 ppb |
| Measurement frequency | once per minute |
| Sampling | at least 100 ml/min, PTFE 6/4 mm line up to 10 m |
| Power | 24 V DC (19–32 V), 3.2 A |
| Certification | ATEX II 2G Ex db IIB+H2 T4 Gb; IECEx |
| Protection | IP65 |
| Operating temperature | −20 to +50 °C (ATEX to +55 °C) |
| Humidity | 0–99 % |
| Dimensions | 219 × 219 × 172 mm |
| Weight | 15 kg |
Maintenance
| Interval | Replaced parts |
|---|---|
| 6 months | PID lamp, electrode stack, inline filter, restrictor, hydrophobic and carbon filters |
| 12 months | Airsep filter as well |
Fixed and portable monitoring
The Titan 2 watches one point continuously. For rounds and locating sources, use the portable Tiger XT Select; for personal monitoring, the wearable Cub. For fixed total VOC monitoring, see Falco.
Supply in Kazakhstan
KEG TRK is the official representative of Ion Science in Kazakhstan. We help choose installation points and arrange supply, commissioning and service. Price on request.
Technical specifications
| Type | fixed benzene monitor |
| Sensor | MiniPID T2, 10.0 eV, proprietary separation method |
| Range | 0.02–20 ppm (20 ppb – 20 ppm) |
| Resolution | 10 ppb |
| Accuracy | ±50 ppb or ±10 % (greater); ±10 ppb up to 0.1 ppm |
| Measurement frequency | once per minute |
| Outputs | isolated 4–20 mA; RS485 Modbus ASCII/RTU; 2 relays 24 V DC 1.25 A |
| Data storage | at least 2 GB (over 6 months) |
| PC connection | Micro USB |
| Sampling | at least 100 ml/min, PTFE line up to 10 m |
| Power | 24 V DC (19–32 V), 3.2 A |
| Certification | ATEX II 2G Ex db IIB+H2 T4 Gb; IECEx |
| Protection | IP65 |
| Operating temperature | −20 to +50 °C (ATEX to +55 °C) |
| Humidity | 0–99 % |
| Dimensions | 219 × 219 × 172 mm |
| Weight | 15 kg |
Applications
Manufacturer
Ion Science
Flameproof fixed benzene monitor: MiniPID sensor with a proprietary separation method, 20 ppb – 20 ppm range, one reading per minute, 4–20 mA, RS485 Modbus and two relays. Ex db IIB+H2 T4 Gb, IP65.
Key specifications
- Type
- fixed benzene monitor
- Sensor
- MiniPID T2, 10.0 eV, proprietary separation method
- Range
- 0.02–20 ppm (20 ppb – 20 ppm)
- Resolution
- 10 ppb
- Accuracy
- ±50 ppb or ±10 % (greater); ±10 ppb up to 0.1 ppm
Official supplier in Kazakhstan
