Supply in Kazakhstan
KEG TRK supplies measurement instrumentation solutions (ELEMER) across Kazakhstan: Almaty, Astana, Karaganda, Ust-Kamenogorsk, Aktobe and other regions. Official warranty, monitoring system design, installation, commissioning and personnel training.
Key features
Applications and resources
Industry solutions, landing pages and articles about PID Temperature Controller IRT 5501/M1
Where it is used
Typical tasks
- Temperature control of process operations
- Control of heaters, gate valves, dampers, valves
- Oil, gas and chemical industry
Description

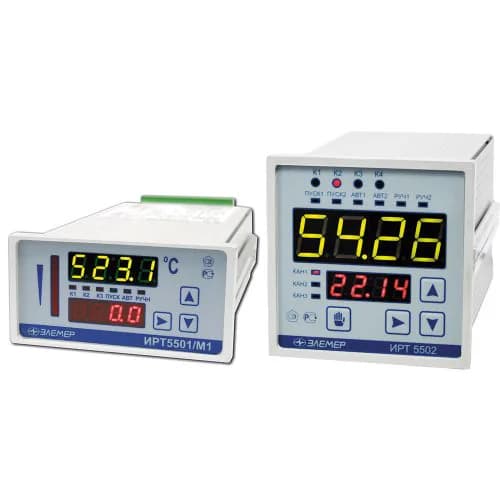

IRT 5501/M1 is a PID temperature controller by ELEMER with a self-tuning function for controlling heating elements, gate valves, dampers and valves. It supports positional, PID and PDD regulation with automatic parameter tuning, as well as manual control mode.
The device features 4 discrete inputs, 3 control outputs (relay or optothyristor) and a 0-5/0-20/4-20 mA current output, up to 4 setpoints per channel. It is configured via the front-panel keypad or through the RS-232/RS-485 interface. An explosion-proof version [Exia]IIC is available.
Technical specifications
| Device type | IRT 5501/M1 |
| Number of channels | 1 |
| Versions | general industrial, Ex ([Exia]IIC) |
| Control type | positional, PID (self-tuning), PDD (self-tuning), manual |
| Control objects | heaters, gate valves, dampers, valves |
| Discrete inputs | 4 |
| Accuracy | up to ±0.1% (class A) / up to ±0.2% (class B) |
| Control outputs | 3 (relay or optothyristor) |
| Setpoints per channel | 4 |
| Current output | 1 (0-5, 0-20 or 4-20 mA) |
| Built-in power supply | 24 V (22 mA) per channel |
| Interface | RS-232 and RS-485 |
Applications
Certificates and approvals
- ✓ELEMER technical documentation
Manufacturer
ELEMER
Self-tuning PID temperature controller IRT 5501/M1 for heaters, gate valves, dampers, valves
Key specifications
- Device type
- IRT 5501/M1
- Number of channels
- 1
- Versions
- general industrial, Ex ([Exia]IIC)
- Control type
- positional, PID (self-tuning), PDD (self-tuning), manual
- Control objects
- heaters, gate valves, dampers, valves
Official supplier in Kazakhstan
Related products
IRT Measuring Controllers
IRT process measuring controllers - temperature measurement, regulation and alarm
ELEMER
Loop Indicator ITC 420/M4-1, /M4-2
Current loop indicator ITC 420/M4 - loop-powered from 4-20 mA, no external power supply
ELEMER
Data Logger RMT 19
Multi-channel data logger RMT 19 with PID control - modular structure up to 24 inputs
ELEMER
Need advice?
Our specialists will help you choose the optimal PID Temperature Controller IRT 5501/M1 configuration for your equipment.
