Supply in Kazakhstan
KEG TRK supplies remote visual inspection (endoscopy) solutions (Olympus) across Kazakhstan: Almaty, Astana, Karaganda, Ust-Kamenogorsk, Aktobe and other regions. Official warranty, monitoring system design, installation, commissioning and personnel training.
Key features
Applications and resources
Industry solutions, landing pages and articles about Olympus IPLEX G Lite-W — videoscope for wind energy
Where it is used
Typical tasks

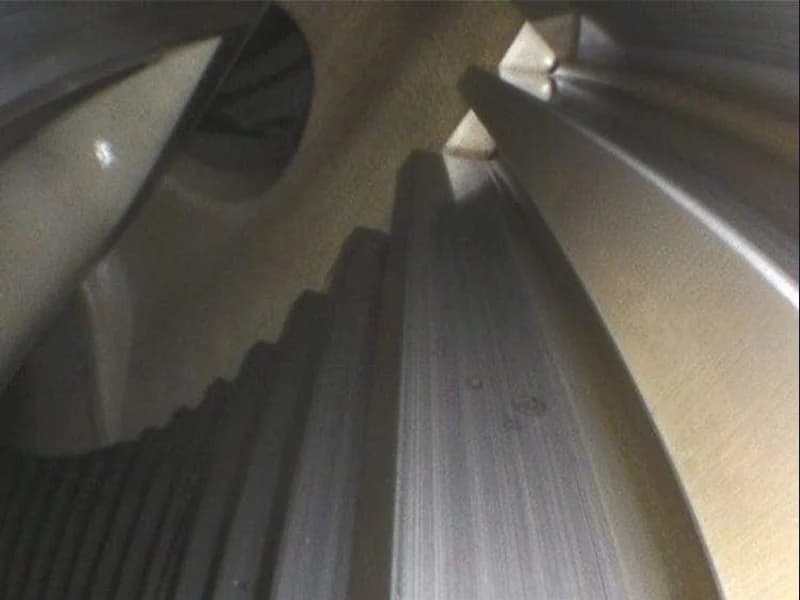

- Wind turbine gearboxes — teeth, bearings, debris
- Generators and main shaft in the nacelle
- Blades and internal cavities
- Tower welds and flanges
- Field visual inspection in power generation
Overview
The IPLEX G Lite-W is the wind energy variant of the compact IPLEX G Lite videoscope from Olympus (now the Evident brand). In the manufacturer's words, in the cramped quarters of a wind tower nacelle its combination of portability and imaging power makes the job easier.
It weighs 1.16 kg with the battery, so it is easy to carry up the tower. The TaperedFlex probe becomes softer toward the tip and navigates bends inside a gearbox more easily, and a two-stage warning signals high temperature.
Wind-specific features
- TaperedFlex — probe flexibility gradually increases toward the distal end.
- Two-stage temperature warning.
- 1.16 kg with battery.
- Wi-Fi via USB adapter — view the image in IPLEX Image Share on iOS.
Specifications shared with the G Lite
| Parameter | Value |
|---|---|
| Probes | Ø4.0 and Ø6.0 mm, 2.0–10.0 m |
| Articulation | 130° (Ø4 mm), 150° (Ø6 mm) |
| Display | 4.3" WVGA 800 × 480 |
| Recording | H.264, 60/30 fps, SDHC, last 30 min |
| Power | battery ~90 min, mains 100–240 V |
| Protection | IP65, MIL-STD-810G |
| Probe temperature | −25 to +100 °C (in air) |
More on the base model: IPLEX G Lite.
Wind turbines as a system
The videoscope shows the condition of gearbox teeth and bearings; defect growth between inspections is tracked with vibration monitoring and oil analysis.
Supply in Kazakhstan
KEG TRK supplies Olympus (Evident) videoscopes for wind energy and trains staff. Price on request.
Technical specifications
| Purpose | wind turbine inspection |
| Probe | TaperedFlex, Ø4.0 / Ø6.0 mm, 2.0–10.0 m |
| Articulation | 130° (Ø4 mm), 150° (Ø6 mm) |
| Temperature monitoring | two-stage high-temperature warning |
| Display | 4.3" WVGA 800 × 480 |
| Recording | H.264, 60/30 fps, SDHC, constant recording of the last 30 min |
| Power | battery about 90 min; mains 100–240 V |
| Protection | IP65, MIL-STD-810G |
| Weight | 1.16 kg with battery |
Applications
More by industry
Manufacturer
Olympus
Wind turbine version of the compact IPLEX G Lite videoscope: TaperedFlex probe, two-stage high-temperature warning, 1.16 kg, IP65, 4.3" screen and constant recording of the last 30 minutes.
Key specifications
- Purpose
- wind turbine inspection
- Probe
- TaperedFlex, Ø4.0 / Ø6.0 mm, 2.0–10.0 m
- Articulation
- 130° (Ø4 mm), 150° (Ø6 mm)
- Temperature monitoring
- two-stage high-temperature warning
- Display
- 4.3" WVGA 800 × 480
