Industry solutions, landing pages and articles on Olympus NORTEC 600 — eddy current flaw detector
Where it is used
Typical tasks
- Surface crack detection in aircraft structures
- Bolt hole inspection with rotary scanners
- Heat exchanger and HVAC tubing inspection
- Metal sorting by conductivity
- Paint and anodised coating thickness
Overview

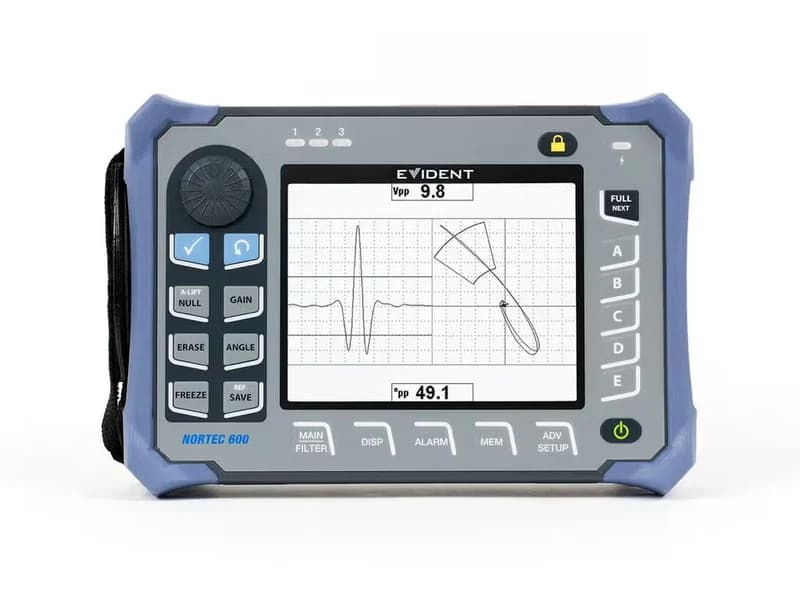

The NORTEC 600 is a portable eddy current flaw detector from Olympus (now the Evident brand). Eddy current testing finds surface and near-surface cracks in conductive materials and measures conductivity and non-conductive coating thickness. Its main applications are aerospace, bolt hole inspection and heat exchanger tubing.
Versions
| Version | Purpose |
|---|---|
| N600 | base, crack detection |
| N600C | adds conductivity measurement |
| N600S | rotary scanners (bolt holes) |
| N600D | dual frequency |
Conductivity measurement from 0.9 to 110 % IACS is available on the C, S and D versions.
Technical specifications
| Parameter | Value |
|---|---|
| Frequency | 10 Hz–12 MHz |
| Conductivity | 0.9–110 % IACS (0.5–64 MS/m) |
| Coatings | 0–0.648 mm, ±0.025 mm |
| Connectors | 16-pin LEMO, BNC |
| Display | 5.7" VGA 640 × 480 |
| Memory | 500 traces of 120 s |
| Power | up to 10 h (6–8 h with scanners) |
| Protection | IP66 |
| Operating temperature | −10 to +50 °C |
| Dimensions | 236 × 167 × 70 mm |
| Weight | 1.7 kg |
Other instruments for aerospace NDT
Bonds and composites: BondMaster 600. Impact damage in carbon fibre: 35RDC. Ultrasound: EPOCH 650.
Supply in Kazakhstan
KEG TRK supplies Olympus (Evident) eddy current flaw detectors, probes and scanners, and trains staff. Price on request.
Technical specifications
| Versions | N600, N600C, N600S, N600D |
| Frequency | 10 Hz–12 MHz |
| Conductivity | 0.9–110 % IACS (0.5–64 MS/m), C, S, D versions |
| Coatings | 0–0.648 mm, 0.025 mm accuracy |
| Connectors | 16-pin LEMO, BNC with automatic balancing |
| Display | 5.7" VGA 640 × 480, transflective |
| Memory | 500 traces up to 120 s |
| Power | Li-ion, up to 10 h; 6–8 h with rotary scanners |
| Protection | IP66 |
| Operating temperature | −10 to +50 °C |
| Dimensions | 236 × 167 × 70 mm |
| Weight | 1.7 kg with battery |
Applications
More by industry
Manufacturer
Olympus
Portable Olympus (Evident) eddy current flaw detector: 10 Hz–12 MHz, four versions (600, 600C, 600S, 600D), conductivity 0.9–110 % IACS and non-conductive coating thickness to 0.648 mm, VGA display, up to 10 h, IP66.
Key specifications
- Versions
- N600, N600C, N600S, N600D
- Frequency
- 10 Hz–12 MHz
- Conductivity
- 0.9–110 % IACS (0.5–64 MS/m), C, S, D versions
- Coatings
- 0–0.648 mm, 0.025 mm accuracy
- Connectors
- 16-pin LEMO, BNC with automatic balancing
