Supply in Kazakhstan
KEG TRK supplies non-destructive testing solutions (Olympus) across Kazakhstan: Almaty, Astana, Karaganda, Ust-Kamenogorsk, Aktobe and other regions. Official warranty, monitoring system design, installation, commissioning and personnel training.
Key features
Applications and resources
Industry solutions, landing pages and articles on Olympus 35RDC — composite damage checker
Where it is used
Typical tasks
- Aircraft skin inspection after impact or collision
- Pre-flight and line checks of composite panels
- Checks after a dropped tool hits a composite part
- First screening before detailed inspection
Overview

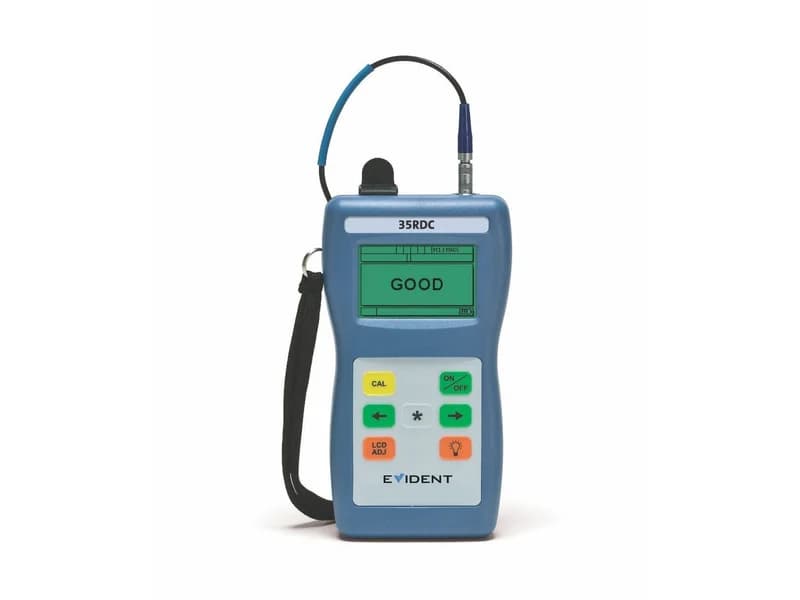

The 35RDC is a simple ultrasonic instrument from Olympus (now the Evident brand) for finding hidden impact damage in solid laminate aircraft composite structures. After an impact there may be no visible mark, yet a delamination is already present inside. The 35RDC shows this immediately: Good, Bad or Beyond CAL.
How it works
- The instrument is calibrated on an undamaged area of the same part.
- The operator places the 5 MHz transducer on the area to check.
- If a reflection arrives earlier than from the back wall, there is a delamination inside and the instrument shows Bad.
Deviation thresholds from the calibration are programmable. Advanced mode offers an A-scan.
Technical specifications
| Parameter | Value |
|---|---|
| Range | 0.63–22.8 mm |
| Transducer | 5.0 MHz |
| Indication | Good / Bad / Beyond CAL, A-scan |
| Power | 3 × AA, ~150 h |
| Protection | IP65 |
| Operating temperature | −10 to +50 °C |
| Weight | 0.24 kg |
For more complex tasks
For bonded and multilayer structures where the 35RDC is not enough, use the BondMaster 600 bond tester. For eddy current inspection of metal skins, the NORTEC 600.
Supply in Kazakhstan
KEG TRK supplies Olympus (Evident) instruments for aviation NDT. Price on request.
Technical specifications
| Purpose | impact damage in solid laminate aircraft composites |
| Range | 0.63–22.8 mm |
| Transducer | 5.0 MHz, fixed velocity for carbon fibre |
| Indication | Good / Bad / Beyond CAL; A-scan in advanced mode |
| Alarms | programmable ± from calibration point |
| Display | backlit LCD |
| Power | 3 × AA (alkaline or NiMH), ~150 h; 30 h with backlight |
| Protection | IP65 |
| Operating temperature | −10 to +50 °C |
| Weight | 0.24 kg |
Applications
More by industry
Manufacturer
Olympus
Simple go/no-go Olympus (Evident) ultrasonic instrument for finding hidden impact damage in solid laminate aircraft composites: 0.63–22.8 mm, 5 MHz transducer, 150 h on three AA batteries, IP65, 240 g.
Key specifications
- Purpose
- impact damage in solid laminate aircraft composites
- Range
- 0.63–22.8 mm
- Transducer
- 5.0 MHz, fixed velocity for carbon fibre
- Indication
- Good / Bad / Beyond CAL; A-scan in advanced mode
- Alarms
- programmable ± from calibration point
Official supplier in Kazakhstan
Related products
Olympus BondMaster 600 — bond tester
Olympus (Evident) bond tester for disbonds in honeycomb and laminate composites and metal-to-metal bonds: B600 (pitch-catch) and B600M (adds mechanical impedance and resonance), 5.7" VGA display, up to 9 h, IP66.
- B600 (basic), B600M (multimode)
- pitch-catch RF and impulse, pitch-catch swept
Olympus NORTEC 600 — eddy current flaw detector
Portable Olympus (Evident) eddy current flaw detector: 10 Hz–12 MHz, four versions (600, 600C, 600S, 600D), conductivity 0.9–110 % IACS and non-conductive coating thickness to 0.648 mm, VGA display, up to 10 h, IP66.
- N600, N600C, N600S, N600D
- 10 Hz–12 MHz
Olympus 45MG — ultrasonic thickness gauge
Olympus (Evident) ultrasonic thickness gauge: 0.08–635 mm, dual and single element transducers, Echo-to-Echo and THRU-COAT options for measuring through coatings, up to 475,000 readings, 3 AA batteries, IP67, 431 g.
- 0.08–635 mm (depends on material and transducer)
- 0.508–18.699 mm/µs
