Overview

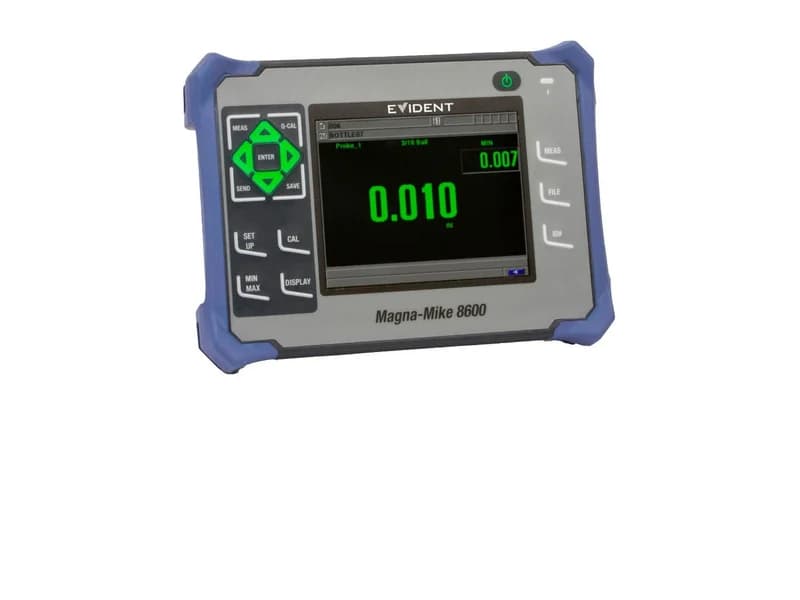

The Magna-Mike 8600 is a magnetic thickness gauge from Olympus (now the Evident brand) for nonferrous materials. A small steel ball, disk or wire is placed on one side of the wall and a Hall effect probe is moved along the other. The gauge measures the distance to the target, which is the wall thickness.
The method suits complex shapes and thin walls: plastic bottles and preforms, packaging, composites and nonferrous castings.
Targets and ranges
| Target | Range |
|---|---|
| 1/16" ball | 0.001–2.03 mm |
| 1/8" ball | 0.001–6.1 mm |
| 3/16" ball | 0.001–9.1 mm |
| 1/4" magnetic ball | 4.06–25.4 mm |
| Disk | 0.001–9.1 mm |
| Wire | 0.001–12.7 mm |
Accuracy is 1–4 % depending on target.
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 0.1 / 0.01 / 0.001 mm |
| Measurement rate | 60 Hz (Min/Max) |
| Probes | 86PR-1, 86PR-2, 86PR-3 |
| Display | VGA 640 × 480 |
| Memory | file-based logger, CSV/TXT |
| Interfaces | USB 2.0, RS-232, VGA |
| Power | 100–240 V; optional 16 h Li-ion |
| Dimensions | 236 × 167 × 70 mm |
| Weight | 1.68 kg |
Ultrasound or Hall effect
For metal walls, pipes and vessels with one-side access, use the ultrasonic 39DL PLUS and 45MG. For thin multilayer products on the line, the 72DL PLUS.
Supply in Kazakhstan
KEG TRK supplies Olympus (Evident) thickness gauges with probes and targets for your products. Price on request.
Technical specifications
| Principle | Hall effect, distance to target |
| Target — 1/16" ball | 0.001–2.03 mm |
| Target — 1/8" ball | 0.001–6.1 mm |
| Target — 3/16" ball | 0.001–9.1 mm |
| Target — 1/4" magnetic ball | 4.06–25.4 mm |
| Target — disk | 0.001–9.1 mm |
| Target — wire | 0.001–12.7 mm |
| Accuracy | 1–4 % depending on target |
| Resolution | 0.1 / 0.01 / 0.001 mm |
| Measurement rate | 60 Hz (Min/Max) |
| Probes | 86PR-1 straight, 86PR-2 right-angle, 86PR-3 low-profile articulating |
| Display | VGA 640 × 480, transflective |
| Memory | file-based data logger, CSV/TXT export via microSD |
| Interfaces | USB 2.0, RS-232, VGA |
| Power | mains 100–240 V; optional 16 h Li-ion |
| Dimensions | 236 × 167 × 70 mm |
| Weight | 1.68 kg |
Applications
More by industry
Manufacturer
Olympus
Magnetic Olympus (Evident) thickness gauge for nonferrous materials: a Hall effect sensor measures the distance to a steel ball, disk or wire on the other side of the wall. 0.001 to 25.4 mm, 60 Hz, VGA display, data logger.
